Testing Hardware

Researchers developing electrolysers and fuel cells benefit from our Leancat Electrolyzers AirCells, which allow quick, reproducible measurements with a variety of sizes and settings, and feature an easy assembly and consistent air-compression mechanism.

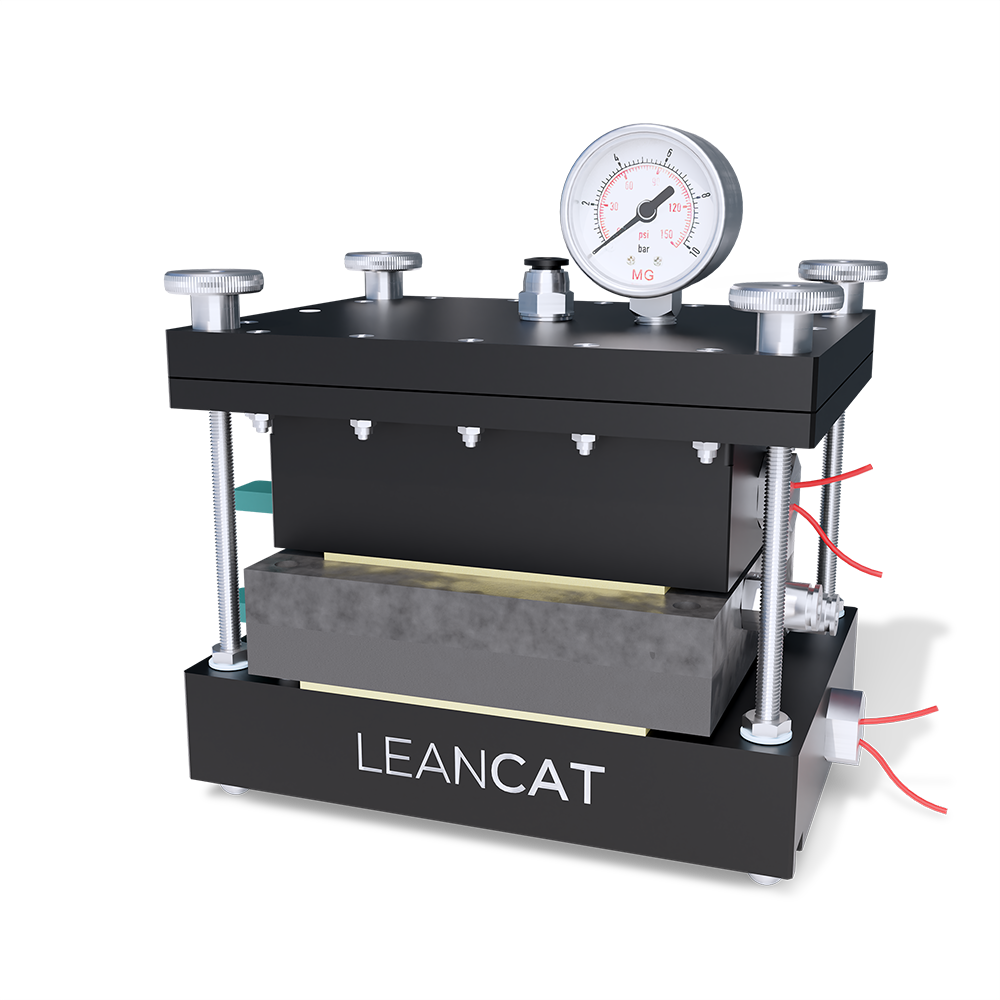

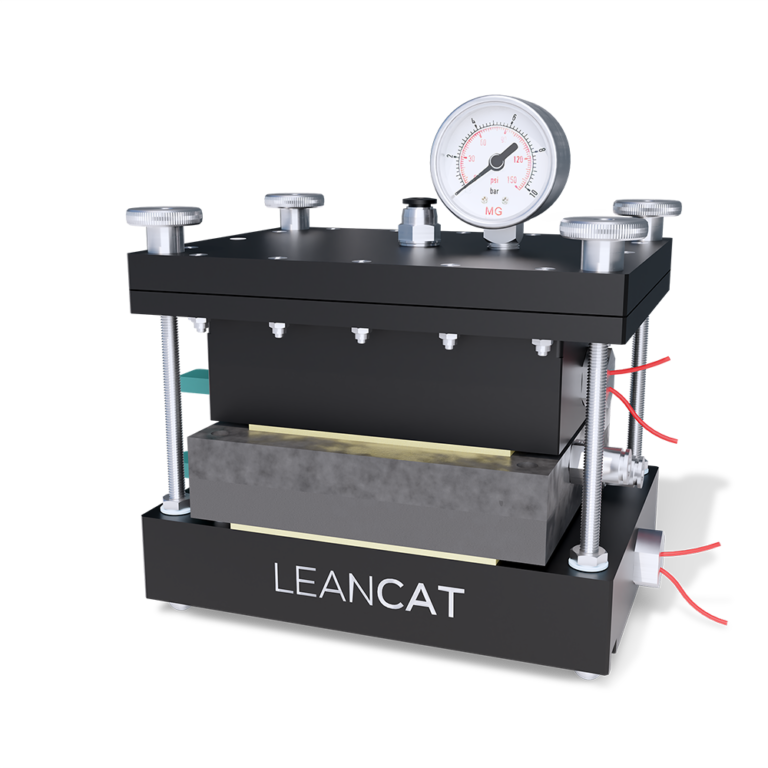

Air-Pressed Test Cell AirCell-HT

  • Compression hardware for single-cell testing
  • Suitable for high-temperature PEM fuel cells or electrolysers
  • Compression system uses pressurized gas
  • Fully controlled tightening force
  • Uniform force distribution

‍

Applications

Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat AirCells offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.
Specifications
Active Area
4.8 cm2
Fuel Compatibility
H2, methanol, ethanol
Monopolar Plate Material
High-density graphite or titanium
Current-Collector Material
Gold-coated copper
Base And Upper Plate Material
Stainless steel
Max. Operating Temperature
200 °C
Max. Operating Pressure
6 bar
Cell Heating
2 cartridge heaters
Temperature Measurement
2 thermocouples included

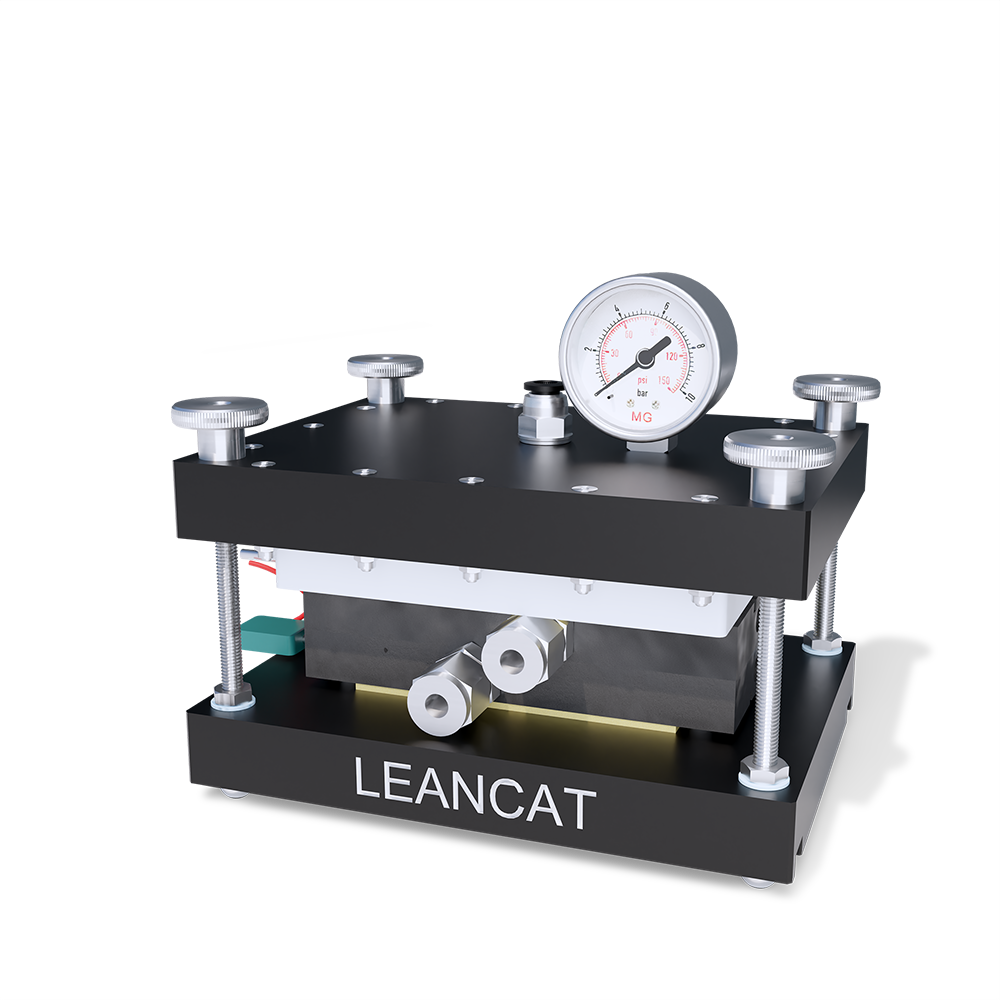

Air-Pressed Test Cell AirCell

  • Compression hardware for single-cell testing
  • Suitable for low-temperature PEM fuel cells or electrolysers
  • Compression system uses pressurized gas
  • Fully controlled tightening force
  • Uniform force distribution

‍

Applications

Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat AirCells offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.
Specifications
Active Area
4.8 – 50 cm2
Fuel Compatibility
H2, methanol, ethanol
Monopolar Plate Material
High-density graphite or titanium
Current-Collector Material
Gold-coated copper
Base And Upper Plate Material
Anodized aluminium
Max. Operating Temperature
80 °C
Max. Operating Pressure
6 bar
Cell Heating
2 cartridge heaters
Temperature Measurement
2 thermocouples included

Laboratory Electrolyzer Stack

  • Test hardware for multi-cell testing
  • Testing up to 5 cells at the same time.
  • Suitable for PEM or AEM electrolyzers
  • Possibility to pressurize up to 50 bar
  • Simple assembly and durable construction

‍

Applications

Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat Electrolyzers laboratory stacks offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.
Specifications
Number of cells
5
Base and upper plates material
Stainless steel
Operating pressure hydrogen
up to 50 bar(g)
Operating pressure oxygen
up to 50 bar(g)
Max. temperature
up to 180°C
Temperature sensors
1 mm K-type thermocouples included
Gas connection type
G 1/4“
Material of current collectors
Stainless steel
Material of bipolar plate
Titanium Grade 1
Flow field
Serpentine
Thickness of bipolar plates
3 mm
Type of gasket
Flat
Active area
25 cm2
Thickness of gasket
1,5 mm
Material of gasket
Silicone
CVM connectors
Faston 2.8 mm

Laboratory Electrolyzer Cell

  • test hardware for MEA and porous layers
  • suitable for PEM or AEM electrolyzers
  • possibility to pressurize up to 50 bar
  • simple assembly and durable construction

‍

Applications

Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat Electrolyzers laboratory cell offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.
Specifications
Number of cells
1
Base and upper plates material
Stainless steel
Operating pressure hydrogen
up to 50 bar(g)
Operating pressure oxygen
up to 50 bar(g)
Max. temperature
up to 180°C
Temperature sensors
1 mm K-type thermocouples included
Gas connection type
G 1/8“
Material of current collectors
Stainless steel
Material of bipolar plate
Titanium Grade 1
Flow field
Serpentine
Thickness of bipolar plates
3 mm
Type of gasket
Flat
Active area
5 cm2
Thickness of gasket
1,5 mm
Material of gasket
Silicone
